UNIT Off-Line Transformer
| Size | Dimensions | L (mm) |
W (mm) |
H (mm) |
Mount | |
|---|---|---|---|---|---|---|
| EF12.6V | 15.0 | 11.0 | 15.8 | DIP | ||
| EF12.6H | 21.5 | 15.0 | 12.0 | DIP | ||
| EE16V | 18.0 | 16.5 | 18.0 | DIP | ||

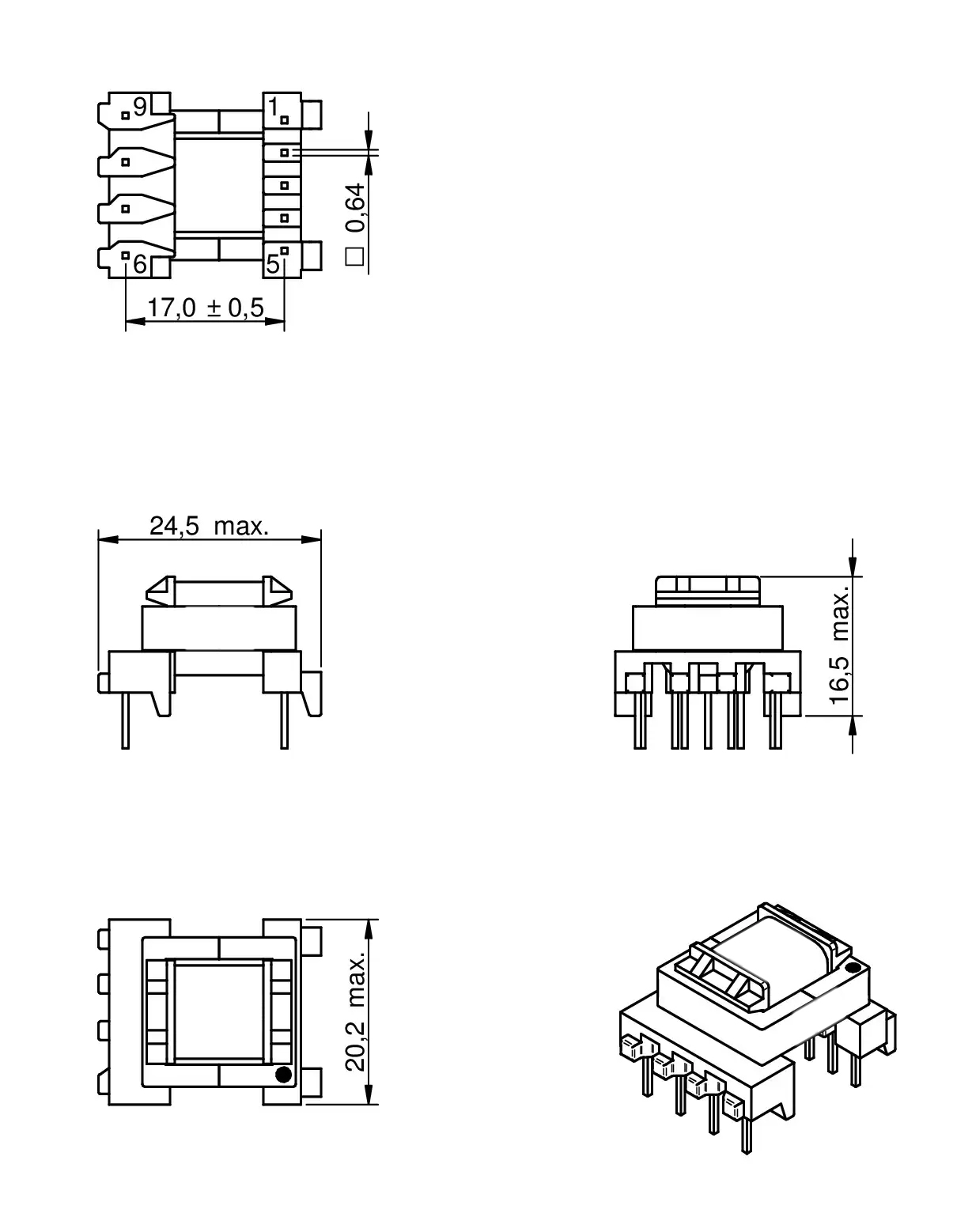

| EE16H | 24.5 | 20.5 | 16.5 | DIP |
Characteristics:
Nominal input voltage: 125–375 VDC
Output power 3 W and 9 W
Operating temperature: –40 °C to +125 °C
Clearance and creepage distance 6 mm min.
Isolation voltage 4 kVAC, 1 Minute
Applications:
Designed for Tiny Switch ICs from Power Integration and NCP101x or 105x of ON Semiconductor
For SMPS with universal input from 85 VAC up to 265 VAC
