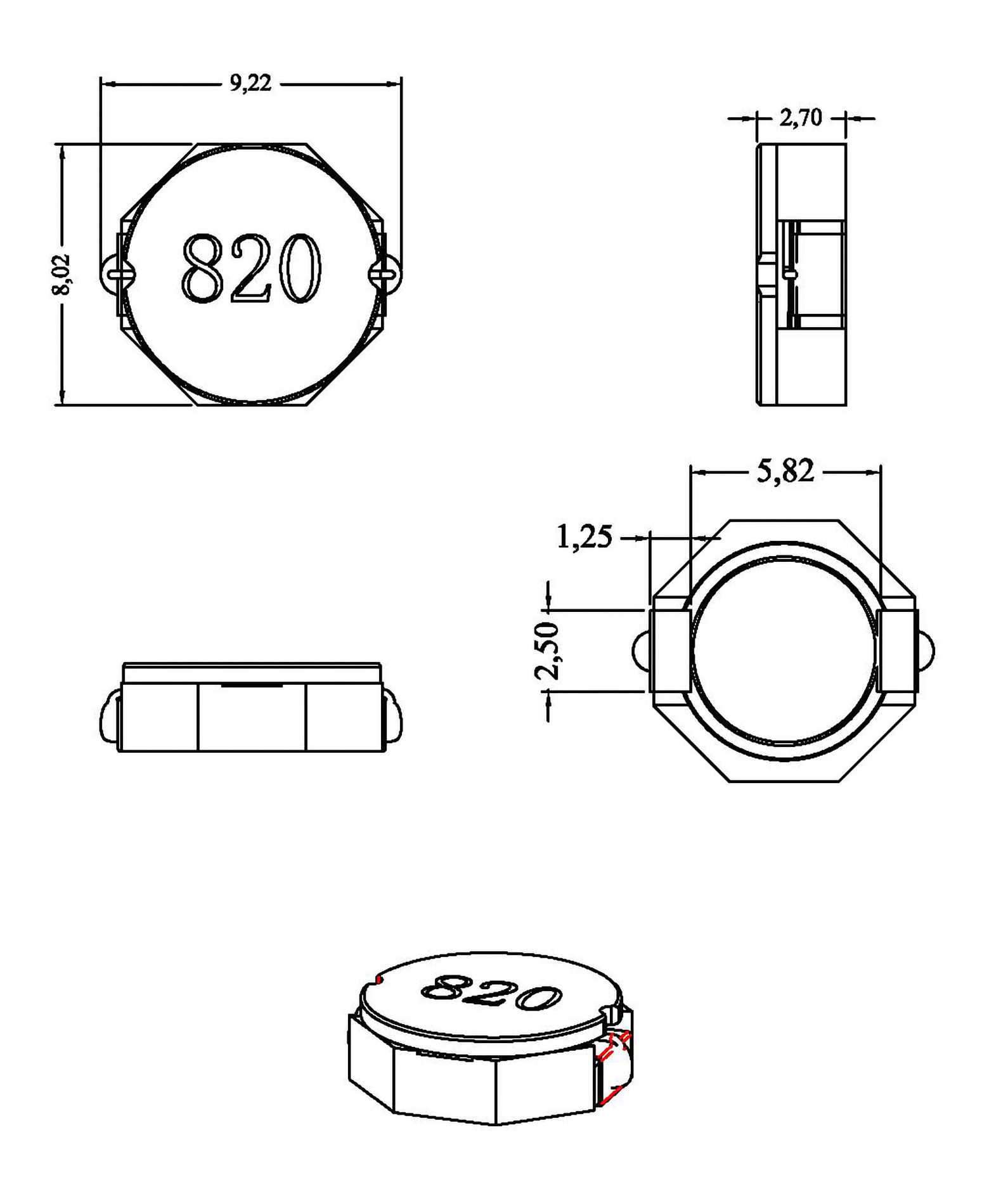

PDRH-D Series SMD Shielded Power Inductor
| Size | Dimensions | L (mm) |
W (mm) |
H (mm) |
Mount | |
|---|---|---|---|---|---|---|
| PDRH4D18 | 5.0 | 5.0 | 2.0 | SMD | ||
| PDRH4D28 | 5.0 | 5.0 | 3.0 | SMD | ||
| PDRH5D18 | 6.0 | 6.0 | 2.0 | SMD | ||
| PDRH5D28 | 6.0 | 6.0 | 3.0 | SMD | ||
| PDRH6D28 | 7.0 | 7.0 | 3.0 | SMD | ||
| PDRH6D38 | 7.0 | 7.0 | 4.0 | SMD | ||
| PDRH8D28 | 9.8 | 8.3 | 3.2 | SMD | ||
| PDRH8D43 | 10.0 | 8.3 | 4.8 | SMD |
Features：
Core material:Ferrite
Core and winding loss
Environmental: RoHS, Reach compliant ,Halogen free
Moisture Sensitivity:Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity).
Operating temperature range: -40 +125 (including coil’s self temperature rise)
Storage temperature range: -40～+125
Application：
Ideally used in Notebook PC,LCD T,Game machine STB
buck converter,network communication equipment, and etc
