PQ Series Flat Wite High current inductor
| Size | Dimensions | L (mm) |
W (mm) |
H (mm) |
Mount | |
|---|---|---|---|---|---|---|
| PSPQ2014 | 22.0 | 21.5 | 14.5 | SMD | ||
| PSPQ2615 | 28.0 | 27.0 | 15.4 | SMD | ||
| PSPQ2618 | 28.0 | 27.0 | 18.5 | SMD | ||
| PSPQ3218 | 33.0 | 23.5 | 20.0 | SMD | ||

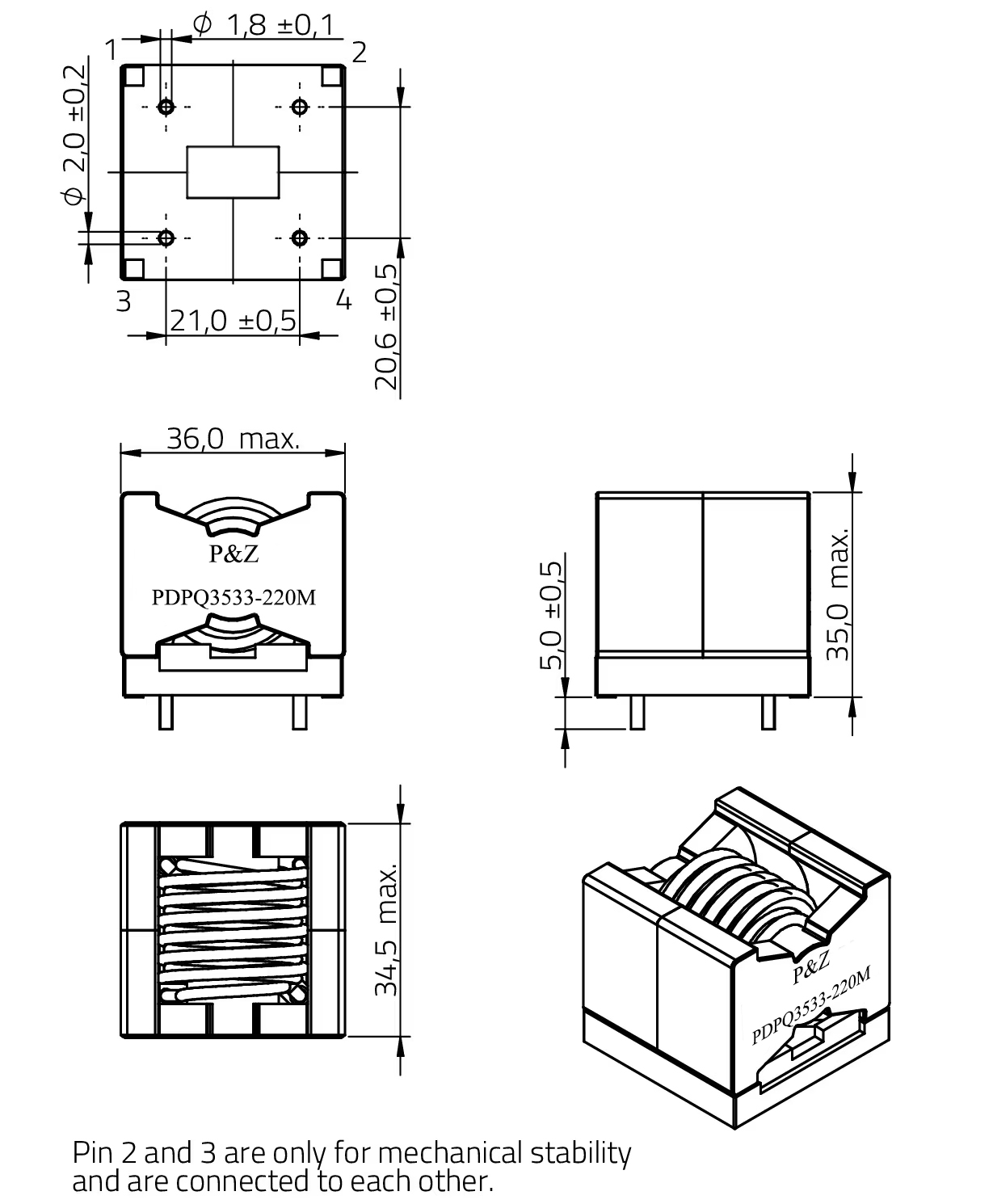

| PDPQ3521 | 21.5 | 36.0 | 35.0 | DIP | ||
| PDPQ3533 | 34.5 | 36.0 | 35.0 | DIP | ||
| PDPQ3540 | 41.0 | 36.0 | 35.0 | DIP |
Characteristics：
Saturation current up to 125 A
Flat, round and litz wire version to optimize the DC & AC losses
Inductance values ranging from 0.7 µH to 680 µH
Low core losses (MnZn)
Magnetically shielded
Litz and round wire: base for SMT mount and coplanarity
Operating temperature: -40°C to
Applications：
Storage inductor for high efficiency DC/DC converters with high ripple currents
Resonant SMPS
Filter for audio applications
