Three-Phase Common Mode Choke
| Size | Dimensions | L (mm) |
W (mm) |
H (mm) |
Mount | |
|---|---|---|---|---|---|---|

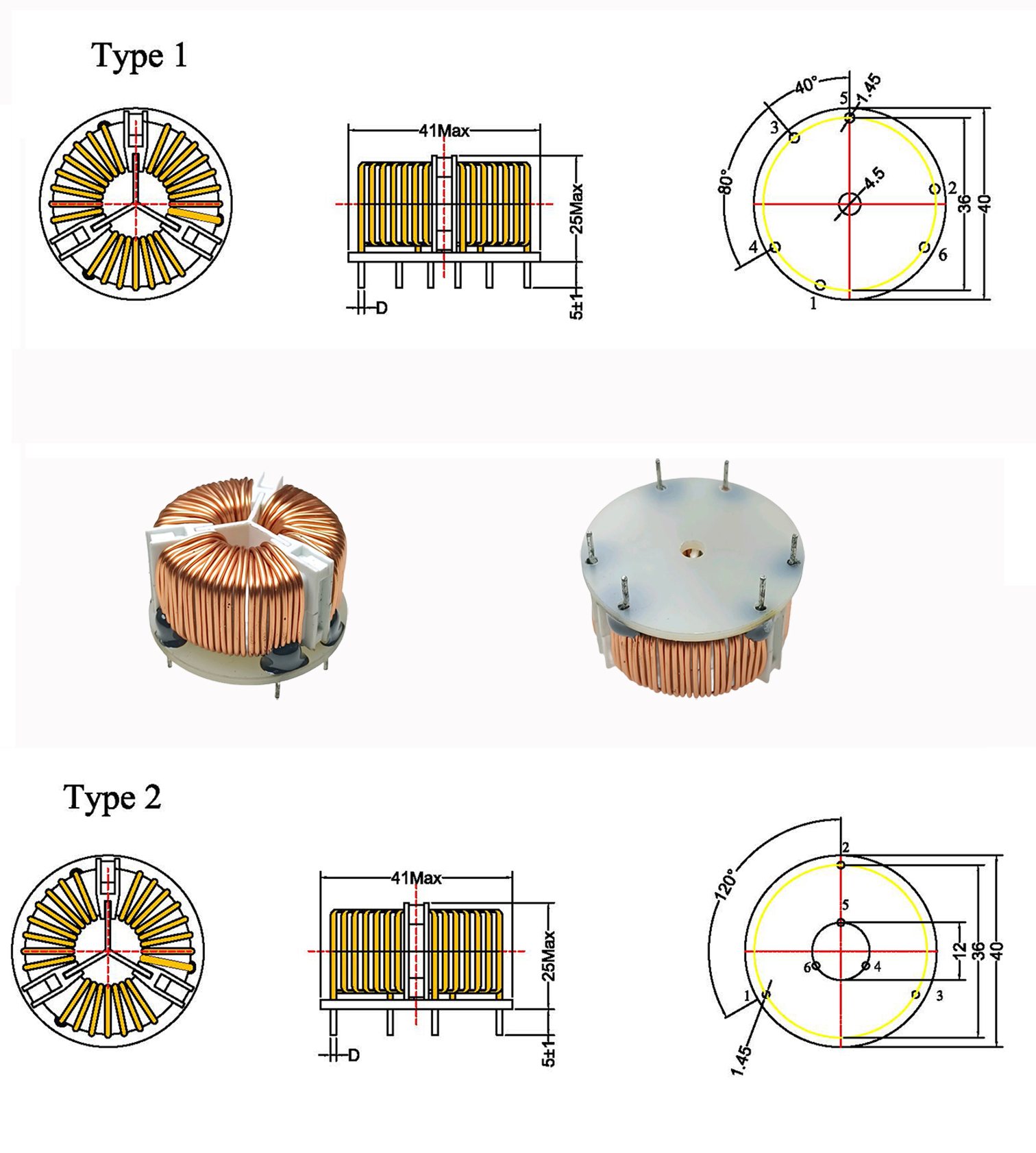

| DBC3113H | 41.0 | 41.0 | 25.0 | DIP | ||
| DBC4032H | 58.0 | 58.0 | 38.0 | DIP | ||
| DBC5030H | 62.0 | 62.0 | 35.0 | DIP | ||
| DBC6040H | 80.0 | 80.0 | 40.0 | DIP |
Characteristics:
High permeability MnZn Ferrite or nanocrystalline core material
Improved insulation through plastic case and winding spacer
Rated current up to 128 A
Suppression frequency range: 1 kHz to 20 MHz depending from used core material
Operating temperature: -40 °C to +125 °C
Flammability corresponding to UL 94 V-0
Applications:
Power electronics
Power line input filter
Radio interference suppression in motors
Suppression for common mode noise
Frequency converter
Power supplies
Charging stations
